Jimothey

Barncaster builds

Recommended Posts



I’m toying with the idea doing a fake barrel top telecaster after seeing a Big D Guitars Video on YouTube




Heres a couple of ideas I’ve came up with............😀


They will be slightly aged looking with relict hardware.......

Opinions please??

  • Like 1

Share this post


Link to post
Share on other sites

I got hold of an old scaffold board to do the body for my Telecaster build so the body blank is all glued up ready to cut tomorrow and I’m doing a Les Paul body blank as well as I’m not too sure about the other body I’ve done............🤔


Ooooohhhhh lovely and rustic!!!!!...........👍

  •

Share this post


Link to post
Share on other sites

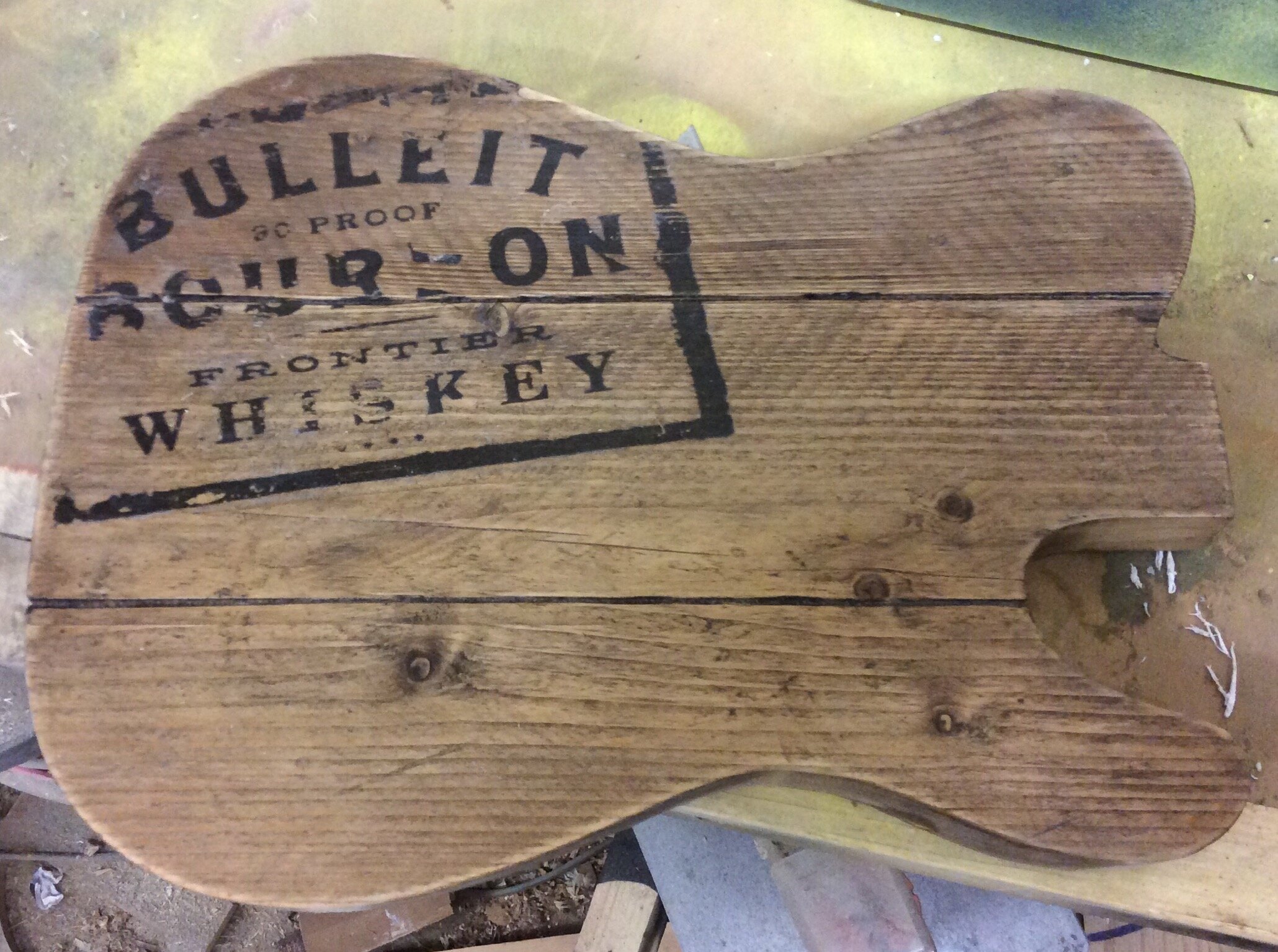

Got both bodies cut this morning


I've decided to make the fake branding slightly smaller than my mock-up

I need to make up some ageing solution to try and get the sides the same colour as the top I’ve read that mixing white vinegar with some bits of wire wool will make it go the kinda silvery colour but I’ll see how it comes out.............🤞

  • Like 1

Share this post


Link to post
Share on other sites

Here’s the body after a couple of coats of tinted Danish Oil on the sides and plain Danish Oil on top, I’m going to sand the top back a little bit so the colour will probably lighten a bit..........


I’m now in two minds whether to bother with the fake branding or just do it like a standard barncaster with a pickguard


I’m thinking for the pickguard either aged White or Black???

Opinions please??

Share this post


Link to post
Share on other sites

I thought I’d try it with a galvanised pickguard


but it looked a bit too shiny so I sanded it a little bit then gave it a bath in some brick cleaner and then washed it with T solution and then it came out a lovely rusty looking colour which I thought was in keeping with the style of the guitar


Now just waiting on the rest of the parts for both of them but I’m probably going to do a Les Paul style pickguard out of the galvanised as well..............😀

Share this post


Link to post
Share on other sites
On 17/12/2019 at 14:44, EliasMooseblaster said:

I do like the way this Tele's going! Only question is: will it cover your picking hand with rust when you play?

No it’s been oiled to seal it but I cut a new pickguard that I haven’t really relict it as much

I've managed to do a bit more on them

I  can’t decide if I prefer the tele with a pickguard or not?

8913AA60-71D6-417B-B805-A6C2551A2184.thumb.jpeg.f317636681ad4136f6bc42675600ae0f.jpegBAC507FF-7B48-4978-9D00-454536531CAF.thumb.jpeg.0fc7493cb71f3f8de0b16af65e156bdf.jpeg1265280B-870A-448B-AB42-354D234AF5DB.thumb.jpeg.c0ecd9c8a7c60359aa94017985a075f7.jpeg





  • Like 1

Share this post


Link to post
Share on other sites
On 21/12/2019 at 14:42, Jimothey said:

No it’s been oiled to seal it but I cut a new pickguard that I haven’t really relict it as much

I've managed to do a bit more on them

I  can’t decide if I prefer the tele with a pickguard or not?

Hmm...in their current states, I'm personally inclined towards the one with the pickguard, though I might change my mind once the neck is on!

Share this post


Link to post
Share on other sites

Still waiting on my pickups to arrive but I managed to get a bit more done on them

F72FA90A-658A-4B7F-9570-DFD0F311C0EC.thumb.jpeg.28f5494922f7c2d101e19ee237661823.jpeg2B51A635-5728-4CC6-8FA6-9C5D8A7BE162.thumb.jpeg.f8e7423fca153d93a389ed5884c767d7.jpeg

I’m going to leave the pickguard off both of them...............😀

Edited by Jimothey
  • Like 2

Share this post


Link to post
Share on other sites

Think you've made the right call there. I didn't realise they'd have those pickup surrounds on as well - probably enough going on without a pickguard as well!

Have to say, the Fender-style neck on the Les Paul body shape looks a lot better than I'd anticipated!

  • Like 1

Share this post


Link to post
Share on other sites

1. Print the image mirrored so it will be the right way up when placed face down on the body

2. Water down some PVA glue and coat the printed side of the paper liberally

3. Leave to dry overnight

4. Once dry wet the paper and rub gently with your finger till the paper  starts coming away to leave just the image but if you rub too hard the image will come off as well

5. When all the paper and white residue is removed either coat it again with watered down PVA or I used danish oil then leave to dry

Hope that makes sense? 👍

Edited by Jimothey
  • Like 2

Share this post


Link to post
Share on other sites

One of the sets of pickups have finally arrived but I had to re order standard Humbuckers instead of the P90’s as they never arrived!! I’m going to fit them in ‘Ole Smokey’ also I’ve kinda changed my mind on the pickup config on ‘The Bulleit’ I’m going to do it with normal tele style pickups and I’m going to fit a cheaper version of the Bigsby tremolo as well.............😀

Share this post


Link to post
Share on other sites

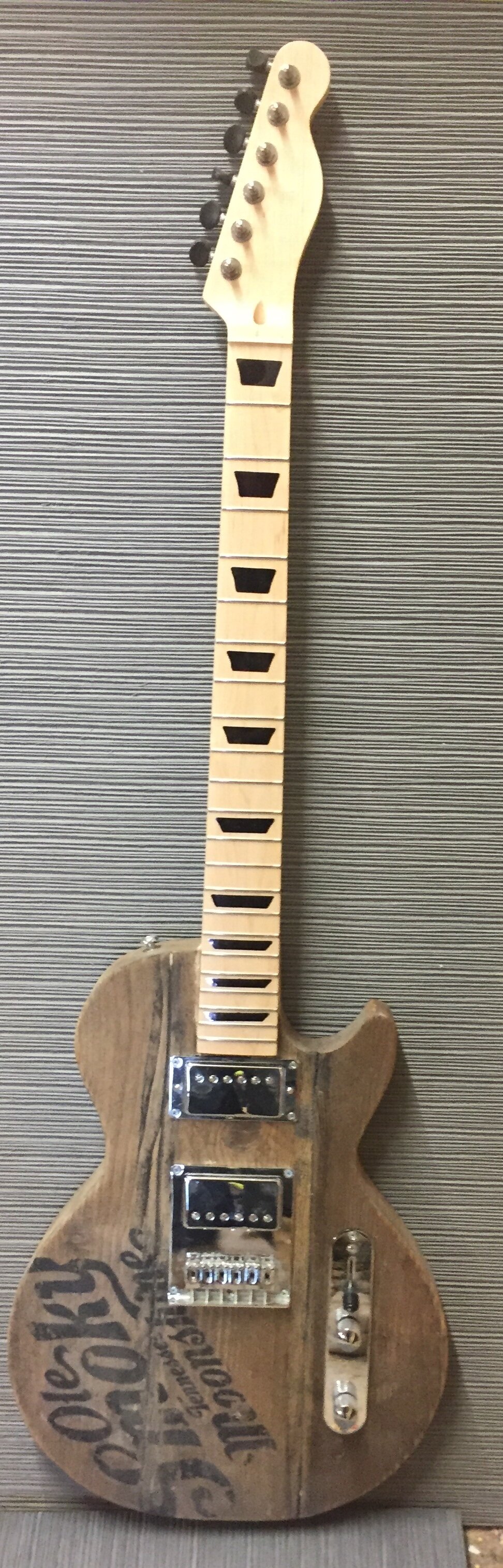

Ole Smokey is almost finished just got to wire it up and do a set up then I’m good to go

Sorry for the crappy photo


  • Like 2

Share this post


Link to post
Share on other sites
